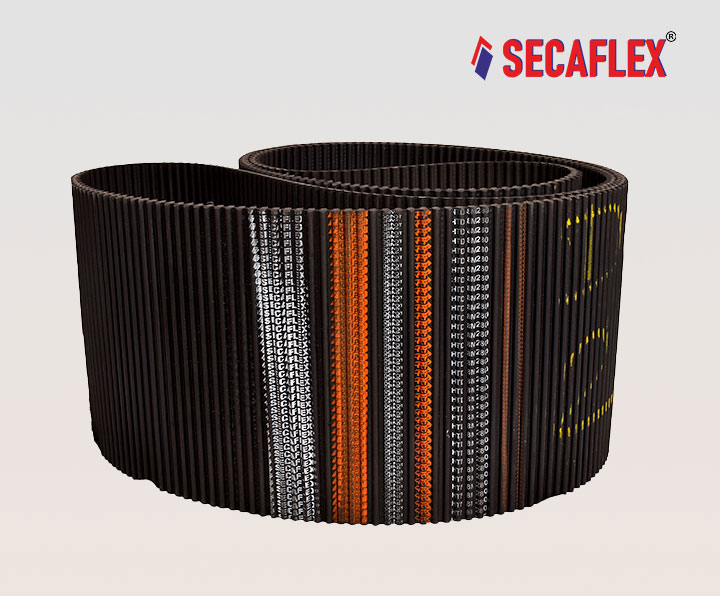

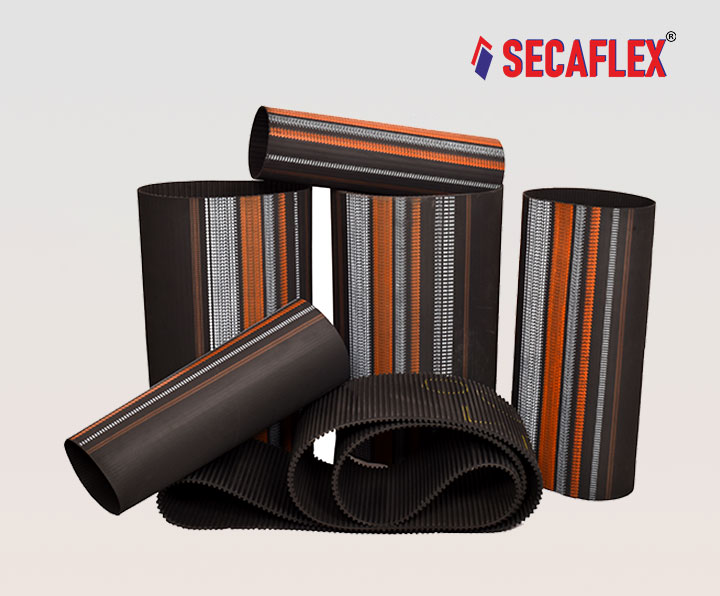

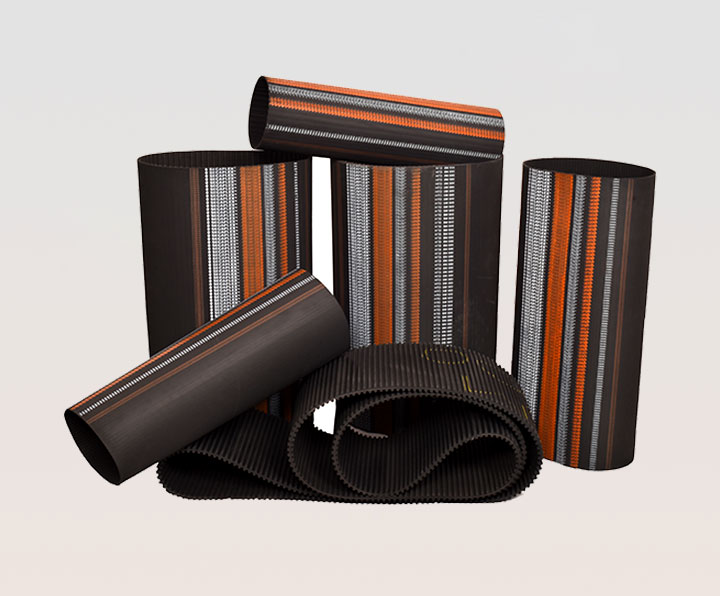

- Project Name: Rubber Timing Belt
We provide the rubber timing belt in a variety of specifications to meet the needs of our clients at fair rates.
If you are looking for the best Rubber Timing Belt Manufacturers In India, look no further. Our goods are better and more inventive than that of our competitors, and our firm has a dominant position in the market. We keep the camshaft and crankshaft in time to make the rubber timing belt valves move freely and the engine running. Market-leading quality and simple installation have made them a popular choice. The materials used to make our timing belt meet or exceed the standards set by our firm.

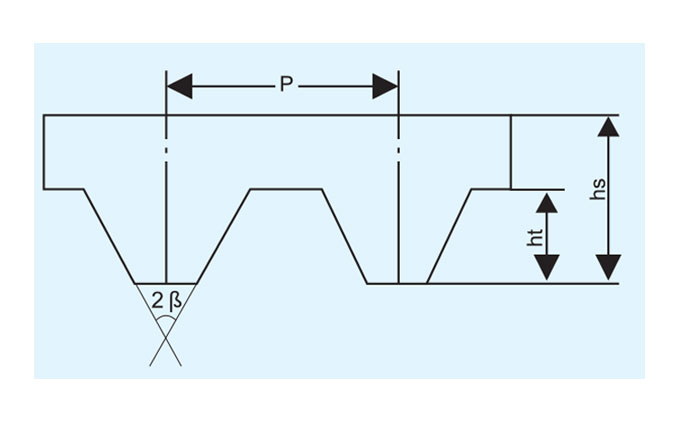

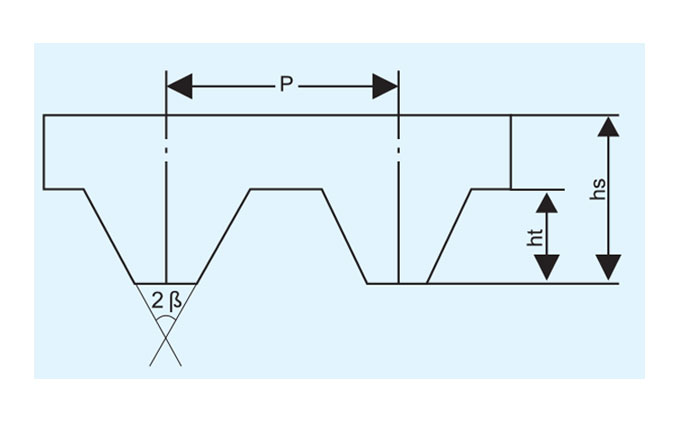

Profile Technical Data
Specifications
| Type | Pb(Pitch) | Teeth No. | P(Pitch length) | hs(Tooth Height) | hs(Belt thickness) | 2β0Angel |
| MXL | 2.032 | 50 -1463 | 101.60 – 2972.82 | 0.51 | 1.14 | 40 |
| XL | 5.080 | 22 – 442 | 111.76-2245.36 | 1.27 | 2.30 | 50 |
| L | 9.525 | 23 – 530 | 219.08 – 5048.25 | 1.91 | 3.60 | 40 |
| H | 12.70 | 29 – 440 | 368.30 – 5588.00 | 2.29 | 4.30 | 40 |
| XH | 22.225 | 53 – 220 | 1177.93 – 4889.50 | 6.35 | 11.20 | 40 |
| XXH | 31.750 | 56 -144 | 1778.00 – 4572 .00 | 9.53 | 15.70 | 40 |
| T2.5 | 2.50 | 58 – 312 | 145.00 -780 .00 | 0.7 | 1.30 | 40 |
| T5 | 5.00 | 30 – 392 | 150.00 -1960.00 | 1.20 | 2.20 | 40 |
| T10 | 10.00 | 34 – 536 | 340.00 – 5360.00 | 2.50 | 4.50 | 40 |
| T20 | 20.00 | 61- 238 | 1220.00 – 4760.00 | 5.00 | 8.00 | 40 |
Types
| Tooth Code | Type | Pb(Pitch) | Teeth No. | P(Pitch length) | hs(Tooth Height) | hs(Belt thickness) |

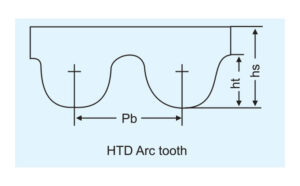

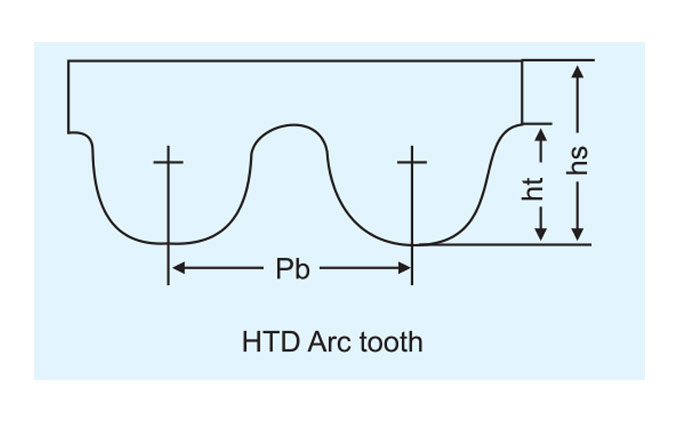

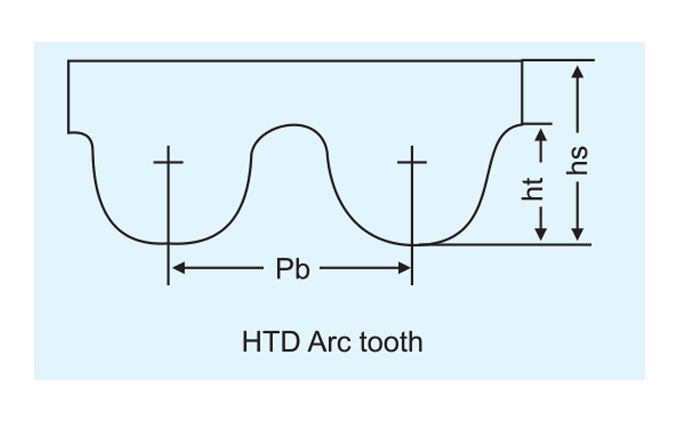

| HTD | 3M | 3.00 | 37 – 1000 | 111.00 – 3000.00 | 1.17 | 2.4 |
| 5M | 5.00 | 36 – 754 | 180.00 – 3770.00 | 2.06 | 3.8 | |
| 8M | 8.00 | 36 – 640 | 288 – 5120 .00 | 3.36 | 6.00 | |
| 14M | 14.00 | 69 – 340 | 966.00 – 4760.00 | 6.02 | 10.00 | |
| 20M | 20.00 | 100 – 260 | 2000.00 – 5200 .00 | 8.4 | 13.20 | |

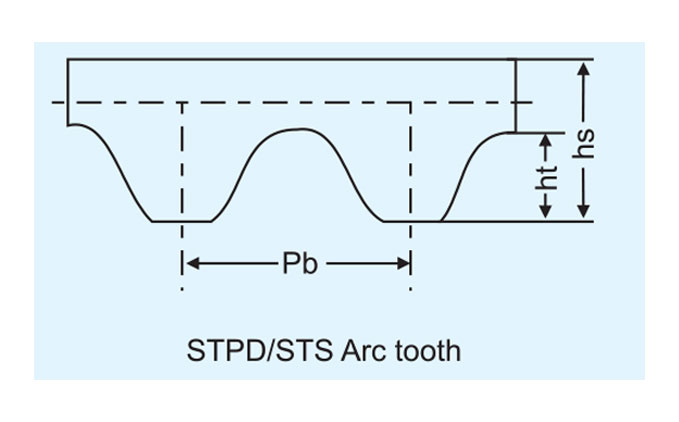

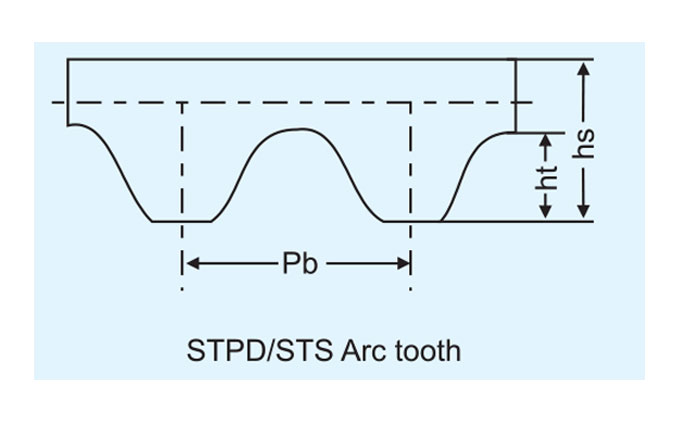

| STPD/STS | S2M | 2.00 | 40 – 1836 | 80.00 – 3672 .00 | 0.76 | 1.36 |
| S3M | 3.00 | 50 – 396 | 150.00 – 1188.00 | 1.14 | 1.9 | |
| S4.5M | 4.50 | 40 – 201 | 180.00 – 905.00 | 1.71 | 2.81 | |
| S5M | 5.00 | 30 – 400 | 150.00 – 2000.00 | 1.91 | 3.4 | |
| S8M | 8.00 | 60 – 284 | 480.00 – 2272.00 | 3.05 | 5.3 | |
| S14M | 14.00 | 69 – 309 | 966 – 4326 .00 | 5.3 | 10.2 | |

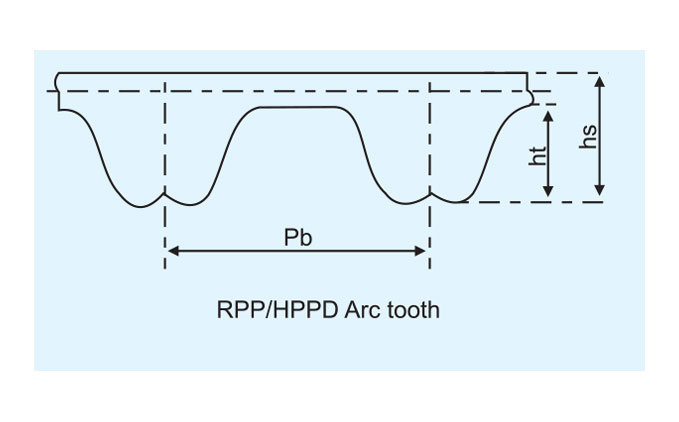

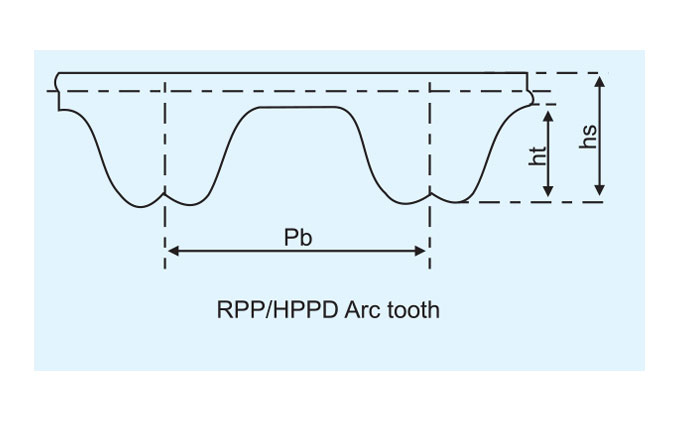

| RPP/HPPD | P2M | 2.00 | 56 – 612 | 112.00 – 1224.00 | 0.76 | 1.36 |
| P3M | 3.00 | 35 – 621 | 105.00 – 1863.00 | 1.15 | 1.9 | |
| P5M | 5.00 | 36 – 400 | 180.00 – 2000.00 | 1.95 | 3.5 | |
| P8M | 8.00 | 36 – 325 | 288 – 2600 .00 | 3.2 | 5.5 | |
| P14M | 14.00 | 69 – 354 | 966.00 – 4956.00 | 6.00 | 10 |
Structure Of Belt
Features
- High flexibility
- Resistant to abrasion
- High load-bearing capacity
- High efficiency
- No retention
- Free from maintenance
- High tension capacity
- Good power transmission capacity
Features Of Rubber Timing Belt
- High flexibility
- Resistant to abrasion
- High load-bearing capacity
- High efficiency
- No retention
- Free from maintenance
- High tension capacity
- Good power transmission capacity
Applications Of Rubber Timing Belt
- Provides precise motion with precise timing
- Virtually no vibrations are made
- There is no slipping problem.
- No noise
- Very high mechanical efficiency
- No requirement for lubrication.
- Very cheap as compared to gears
- No problem of rusting/corrosion
- Safe to use
